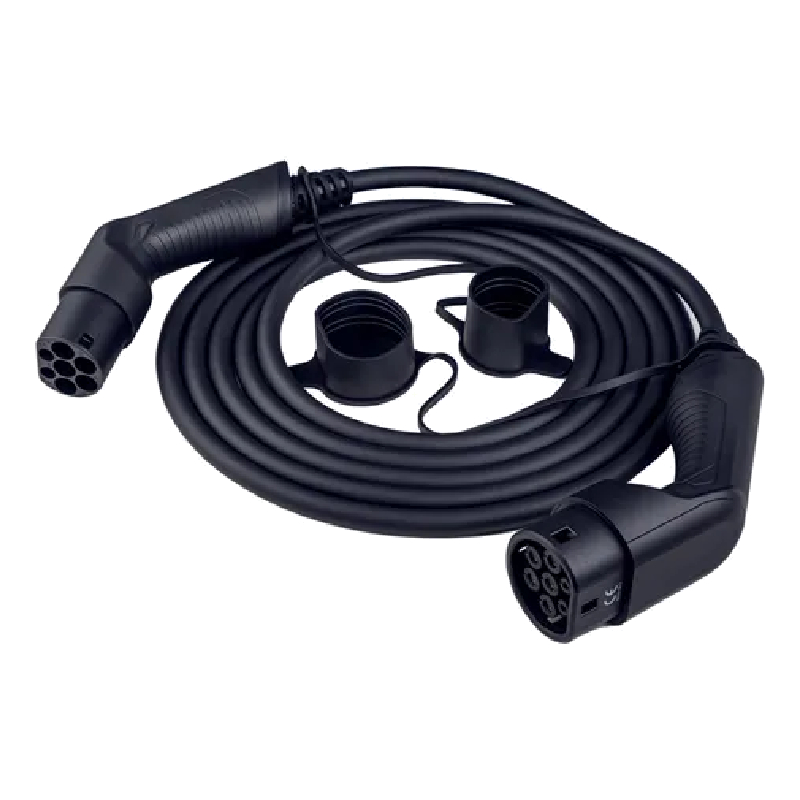

Type 2 to Type 2 Cable
| Category | Specification | Details |
|---|---|---|
| General Specifications | Cable Type | Type 2 to Type 2 |
| Certifications | CE, RoHS | |
| Service Life | > 10,000 cycles | |
| Electrical Specifications | Input Voltage / Output Voltage | AC 230V / 400V |
| Output Current | up to 32A 3 phase | |
| Contact Pin | Copper alloy, silver plated | |
| Vibration Resistance | Meets JDQ53.3 requirements | |
| Mechanical Specifications | Length | 5 meters |
| Color | Black | |
| Cable/Cord/Wire Type | Straight | |
| Plug Material | PC+PA66 | |
| Outer Cable Material | TPE / TPU | |
| Weight | ~2.5 kg | |
| Protection & Safety | Ingress Protection (IP Rating) | IP54 |
| Electrical Protection | Under Voltage Protection, Over Load Protection, Short Circuit Protection, Earth Leakage Protection, Over-temp Protection, Lightning Protection |
|
| Environmental Specifications | Operating Temperature | -25°C to 55°C |
