RM5,200.00

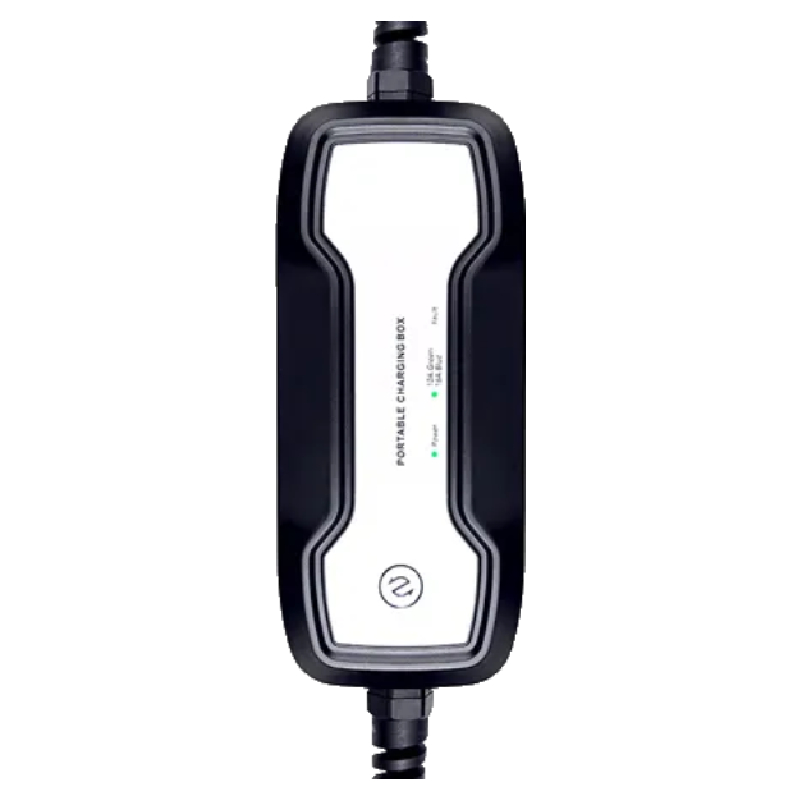

InterStaub 3.6kW Charger (PCD020)

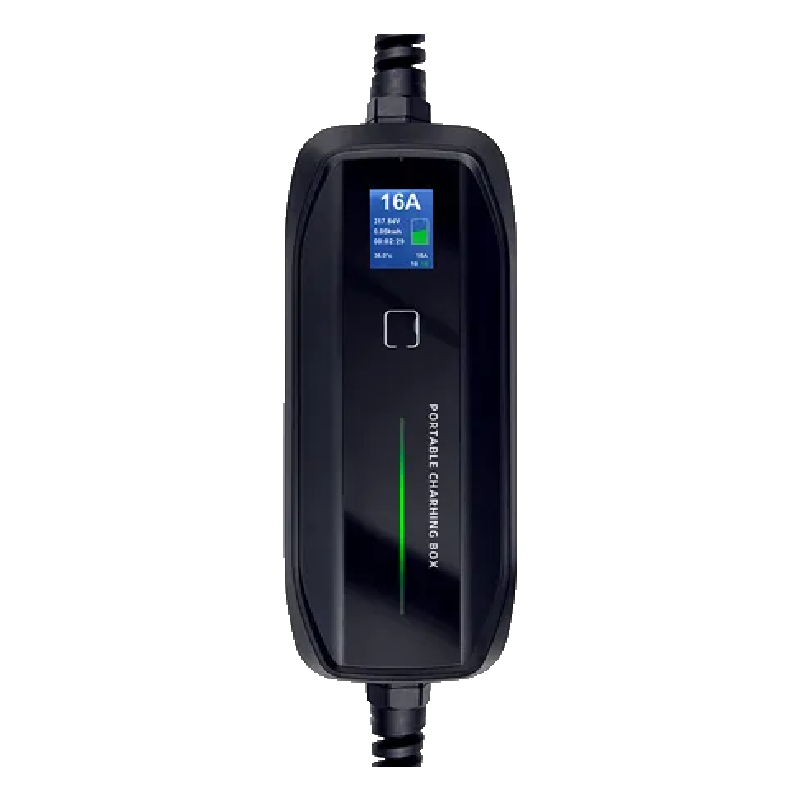

Sternstaub 3.6kW Charger (PCD030)
| Model | PCD020, PCD030 |
|---|
| Category | Specification | Details | |
|---|---|---|---|
| General Specifications | Model | PCD020 | PCD030 |
| Charger Type | AC (Alternating Current) | ||
| Output Power | 3.6 kW | ||
| Warranty | 1 year | ||
| Standards Compliance | CE, RoHS | ||
| Electrical Specifications | Input Voltage | 100~250V AC | |
| Output Voltage | 100~250V AC | ||
| Input Frequency | 47-63 Hz | ||
| AC Power Output Rating | 3.6 kW | ||
| Max. Output Current | 16A, 1 phase | ||
| Terminal Connection | Schuko, UK, CEE, NEMA, AU | ||
| Connector Type | SAE J1772, IEC 62196-2, GB/T | ||
| Mechanical Specifications | Dimensions (L x W x D) | 245mm x 105mm x 48mm | 249mm x 105mm x 55mm |
| Weight | 2.5 kg | 3 kg | |
| Connectivity | Ethernet/Wi-Fi/4G/Bluetooth | No | |
| LED Indicator Light | Yes | ||
| LCD Display Screen | No | Yes | |
| Protection & Safety | Ingress Protection (IP Rating) | IP66 | |
| Electrical Protection | Under Voltage Protection, Over Load Protection, Short Circuit Protection,
Earth Leakage Protection, Over-temp Protection, Lightning Protection |
||
| RCD Type | Type A / Type A+6mA DC | ||
| Environmental Specifications | Operating Temperature | -25°C to 55°C | |
| Functionality | Current Adjusting | Yes | |
