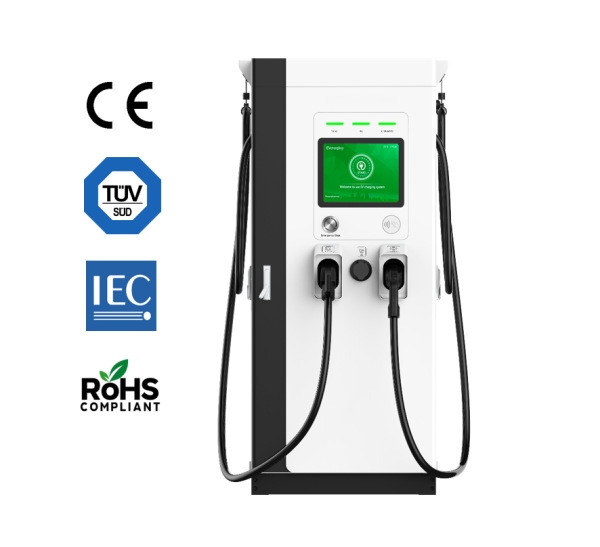

DC Fast Charger
| Category | Specification | Commercial EV Charger | |
|---|---|---|---|
| General Specifications | Model | DC charger | |
| Charger Type | DC (Direct Current) | ||
| Output Power | Up to 320 kW | ||
| Warranty | 3 years | ||
| Standards Compliance | CE, IEC 61851-1, IEC 61851-23. IEC 61851-21-2, RoHS</span > | ||
| Electrical Specifications | Input Voltage | 400 VAC ±10% | |
| Output Voltage | 200 ~ 1000 VDC | ||
| Input Frequency | 50/60Hz ±10% | ||
| Max. Output Current | 500A | ||
| Connector Type | CCS2 / Mennekes (Type 2) configurable</span > | ||
| Mechanical Specifications | Dimensions (H x W x D) | 1880/2100 x 850 x 600 mm | |
| Weight | <450 kg per unit | ||
| Connectivity | Communication | Ethernet, WiFi, 4G | |
| User Authentication | RFID, APP, others | ||
| LED Indicator Light | Yes | ||
| LCD Display Screen | 15″ high brightness full colour touch screen display</span > | ||
| Protection & Safety | Ingress Protection (IP Rating) | IP54, IK10 (Screen IK08) | |
| Electrical Protection | Short circuit, overvoltage, undervoltage, overtemp, surge protection,
lightning, grounding detection, insulation, phase deficiency, RCD: AC outlet-Type A + 6mA; DC outlet-Type A |
||
| Hardware | Emergency stop button | ||
| Environmental Specifications | Operating Temperature | -40°C to 80°C | |
| Operation Temperature | -30°C to 55°C | ||
| Operating Humidity | 5% – 95% | ||
| Operating Altitude | ≤2000 m | ||
| Functionality | Current Adjusting | Yes | |
| Noise | ≤60dB (A) | ||
| OCPP Support | OCPP 1.6J, support update to OCPP 2.0J</span > | ||
| App Support | Yes | ||
| RFID | Yes | ||
| Standby Power Consumption | <80W | ||
