RM5,000.00 – RM6,700.00

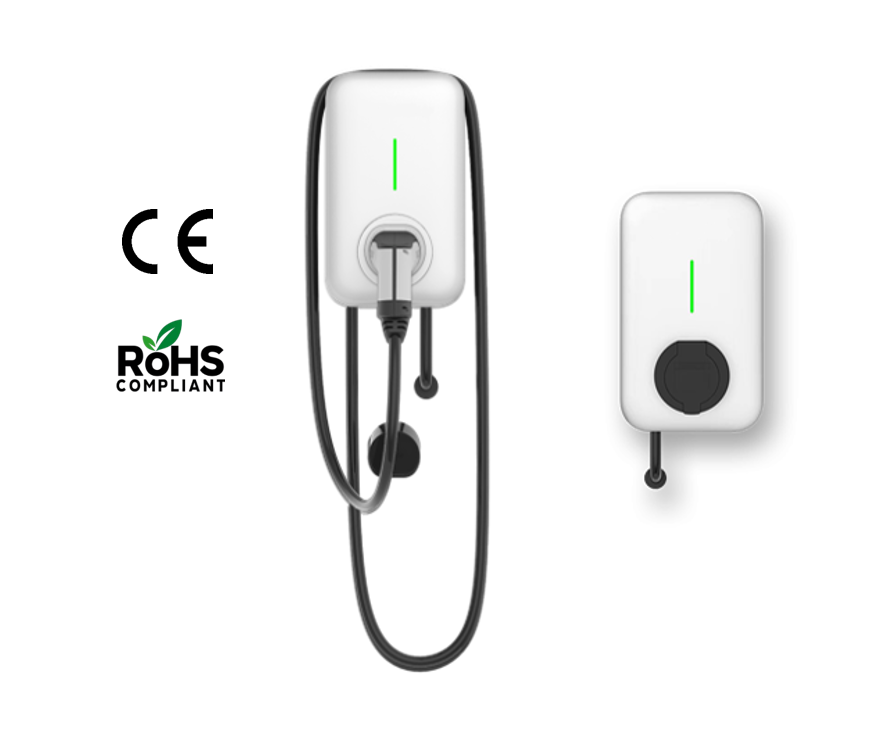

A22 Premium Home EV Charger
| Option | 7kW – Cable Version, 7kW – Socket Version, 22kW – Cable Version, 22kW – Socket Version |
|---|---|
| Installation? | With Installation, No Installation |
| Category | Specification | Commercial EV Charger | |
|---|---|---|---|
| General Specifications | Model | A7-CP | A22-CP |
| Charger Type | AC (Alternating Current) | ||
| Output Power | 7 kW | 22 kW | |
| Warranty | 3 years | ||
| Standards Compliance | CE, TUV, IEC, SIBM, RoHS | ||
| Electrical Specifications | Input Voltage | 230 VAC ±20% | 400 VAC ±20% |
| Output Voltage | 230 VAC ±20% | 400 VAC ±20% | |
| Input Frequency | 50/60Hz | ||
| Max. Output Current | 32A (1-phase) | 32A (3-phase) | |
| Connector Type | Mennekes (Type 2) | ||
| Mechanical Specifications | Dimensions (H x W x D) | 395 x 235 x 110 mm | |
| Weight | ~5 kg (cable version) / ~4 kg (socket version) | ||
| Connectivity | Communication | Wi-Fi, Bluetooth, Ethernet, 4G, RS485 | |
| User Authentication | RFID, APP, others | ||
| LED Indicator Light | Yes | ||
| LCD Display Screen | 4.3″ color LCD screen | ||
| Protection & Safety | Ingress Protection (IP Rating) | IP65 (cable version) / IP55 (socket version) | |
| Electrical Protection | Overcurrent, overvoltage, undervoltage, over-temperature, current leak, ground detection, immersion detection, lightning protection, residual current protection, integrated surge protection | ||
| RCD Type | Type A / Type A+6mA DC | ||
| Environmental Specifications | Operating Temperature | -40°C to 55°C | |
| Operating Humidity | 5% – 95% | ||
| Operating Altitude | <2000 m | ||
| Functionality | Current Adjusting | Yes | |
| Dynamic Load Balancing | Yes | ||
| OCPP Support | OCPP 1.6J, support update to OCPP 2.0 | ||
| App Support | Yes | ||
| RFID | Yes | ||
| Standby Power Consumption | <4W | ||
