Description

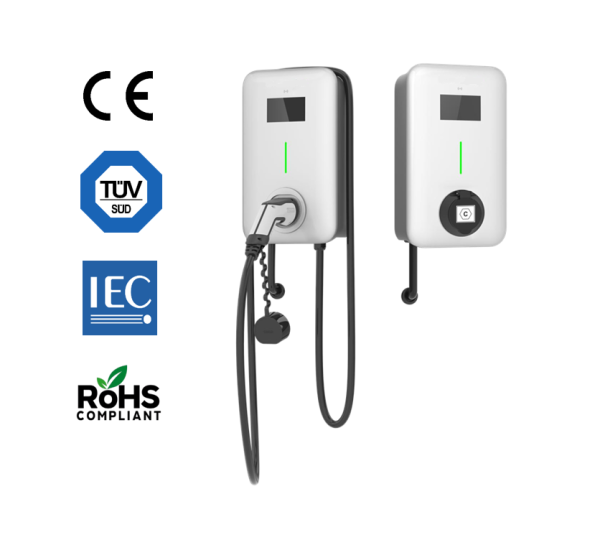

A7/A22-OP Commercial EV Charger

Additional information

Power	7kW w cable, 7kW w/o cable, 22kW w cable, 22kW w/o cable
include	installation, no installation

Category	Specification	Commercial EV Charger
General Specifications	Model	A7-CP	A22-CP
	Charger Type	AC (Alternating Current)
	Output Power	7 kW	22 kW
	Warranty	3 years
	Standards Compliance	CE, TUV, IEC, SIBM, RoHS
Electrical Specifications	Input Voltage	230 VAC ±20%	400 VAC ±20%
	Output Voltage	230 VAC ±20%	400 VAC ±20%
	Input Frequency	50/60Hz
	Max. Output Current	32A (1-phase)	32A (3-phase)
	Connector Type	Mennekes (Type 2)
Mechanical Specifications	Dimensions (H x W x D)	395 x 235 x 110 mm
Mechanical Specifications	Weight	~5 kg (cable version) / ~4 kg (socket version)
Connectivity	Communication	Wi-Fi, Bluetooth, Ethernet, 4G, RS485
	User Authentication	RFID, APP, others
	LED Indicator Light	Yes
	LCD Display Screen	4.3″ color LCD screen
Protection & Safety	Ingress Protection (IP Rating)	IP65 (cable version) / IP55 (socket version)
	Electrical Protection	Overcurrent, overvoltage, undervoltage, over-temperature, current leak, ground detection, immersion detection, lightning protection, residual current protection, integrated surge protection
	RCD Type	Type A / Type A+6mA DC
Environmental Specifications	Operating Temperature	-40°C to 55°C
	Operating Humidity	5% – 95%
	Operating Altitude	<2000 m
Functionality	Current Adjusting	Yes
	Dynamic Load Balancing	Yes
	OCPP Support	OCPP 1.6J, support update to OCPP 2.0
	App Support	Yes
	RFID	Yes
	Standby Power Consumption	<4W
