RM3,399.00 – RM5,099.00

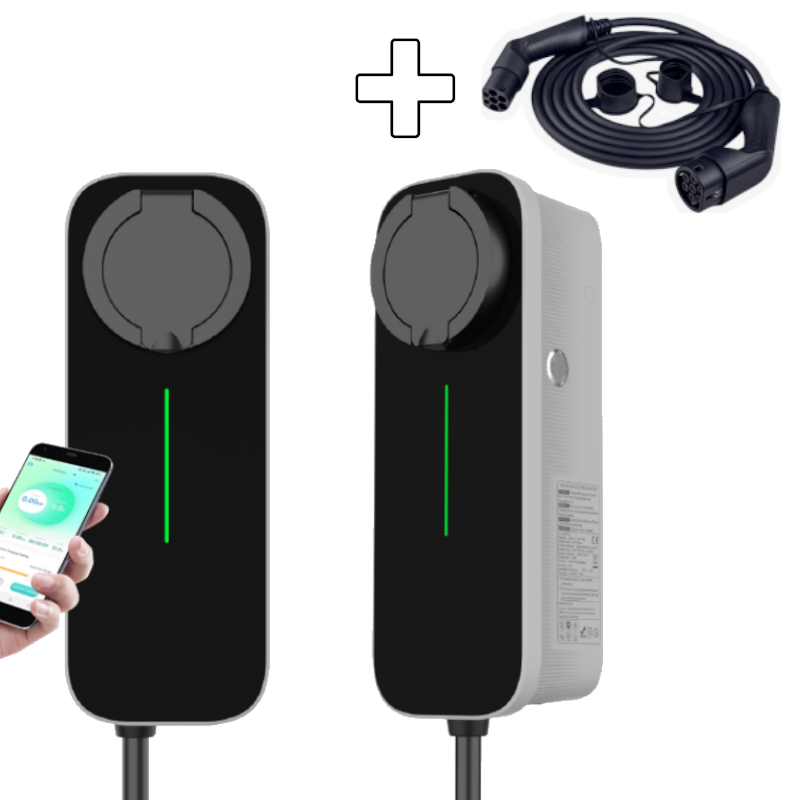

Socketed 22kW EV charger
C/W
Type 2 to Type 2 Cable
| Installation? | With Installation, No Installation |
|---|
| Category | Specification | Details | |
|---|---|---|---|
| General Specifications | Model | BS30 – 22kW – APP | |
| Charger Type | AC (Alternating Current) | ||
| Output Power | 22kW | ||
| Warranty | 2 years | ||
| Standards Compliance | CE | ||
| Electrical Specifications | Input Voltage / Output Voltage | AC 230V / 400V | |
| Input Frequency | 47~63Hz | ||
| AC Power Output Rating | Up to 22kW | ||
| Max. Output Current | 32A 3ph | ||
| Connector Type | IEC 62196-2 | ||
| Mechanical Specifications | Dimensions (L x W x D) | 325mm x 120mm x 87mm | |
| Weight | 3.5 kg | ||
| Mounting Method | Wall-Mounted / Ground-mounting Pole | ||
| Connectivity | Current Adjusting | Yes | |
| LED Indicator Light | Yes | ||
| Start Charging by Button | Yes | ||
| Protection & Safety | Ingress Protection (IP Rating) | IP66 | |
| Electrical Protection | Under Voltage Protection, Over Load Protection, Short Circuit Protection, Earth Leakage Protection, Over-temp Protection, Lightning Protection | ||
| RCD Type | Type A / Type A+6mA DC | ||
| Environmental Specifications | Operating Temperature | -25°C to 55°C | |
| Functionality | Current Adjusting | Yes | |
